Name: LVJB Enclosure 570mm*1000mm*165mm Built-in Design SPCC Network Rack Cabinet
Brand: TC Smart Systems Group
SKU: HB-22-6-C24
Availability: InStock

제품 상세정보

원래 장소: 중국 상하이

브랜드 이름: TC

인증: IEC TIA569-D

모델 번호: HB-22-6-C24

지불과 운송 용어

최소 주문 수량: 협상하다

지불 조건: 티/티

최상의 가격을 얻으세요

제품 상세정보

제품 설명

강조하다:
                                                570mm*1000mm*165mm LVJB Enclosure, Built-in Design Network Rack Cabinet, SPCC Material Server Rack


LVJB Enclosure 570mm*1000mm*165mm Built-in Design SPCC Network Rack Cabinet

LVJB Enclosure 570mm×1000mm×165mm Built-in Design SPCC

Professional built-in LVJB enclosure designed for telecommunications and network applications with SPCC construction and comprehensive component integration.

General Requirements

Operating Conditions

Operating temperature: -20℃ to +60°C
Relative humidity: Normally not exceeding 90% (+40℃)

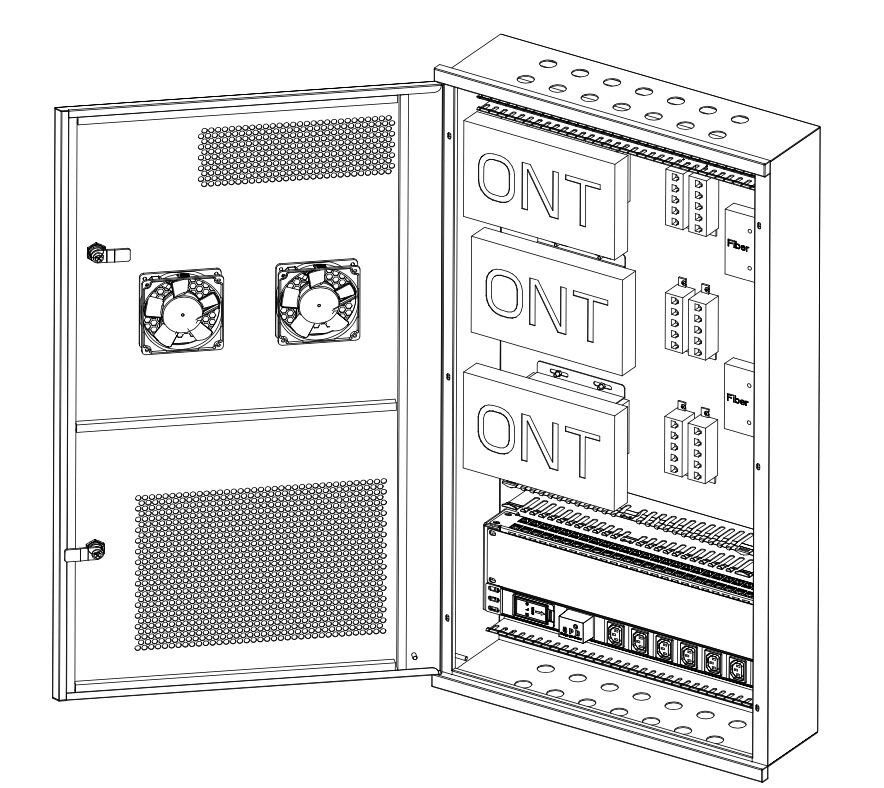

Enclosure Design & Components

No.	Parts	Qty.	Dimensions (mm)
1	Cover	1	/
2	Space for ONT	3	/
3	Installation Panel	1	/
4	Space for Fiber Box	2	/
5	LSA	6	/
6	Space for Cable Management	2	/
7	Space for Copper Patch Panel	1	/
8	2U Blank Panel	1	/
9	Space for PDU	1	/
10	Grounding Screw	2	/
11	Fan	2	/
12	Bracket for ONT (High Type)	2	/
13	Bracket for ONT (Low Type)	1	/
14	Cable Tray	1	25×80×500mm
15	Cable Tray	1	40×50×500mm

Cabinet Technical Performance

Mechanical Performance

Built-in design with external dimensions: 570×1000×165mm
Base size: 550×1000×150mm
Color: RAL9005
Constructed from SPCC material with durable spray coating
Flat, sturdy door with opening angle ≥180°
Flexible and reliable door operation
Sturdy box structure with consistent, interchangeable assembly
No sharp edges or corners on exposed surfaces
Knockout holes reserved for maximum inlet/outlet lines
Equipped with 2 fans and door outlets for optimal heat dissipation
PDU specification: Refer to "PDU-20A-6G-M-P" datasheet
19' mounting rail compliant with TIA/ECA-310-E standard

Standards Compliance

Meets IEC TIA569-D standard requirements and seismic performance specifications.

Packaging, Transportation and Storage

Packaging

Transportation Guidelines

Avoid violent vibration, collision, falling, direct rain, snow, and sun exposure during transportation.

Storage Conditions

Temperature range: -25℃ to 60℃
Relative humidity: ≤85%
Store in dry, ventilated warehouse free of corrosive gases
